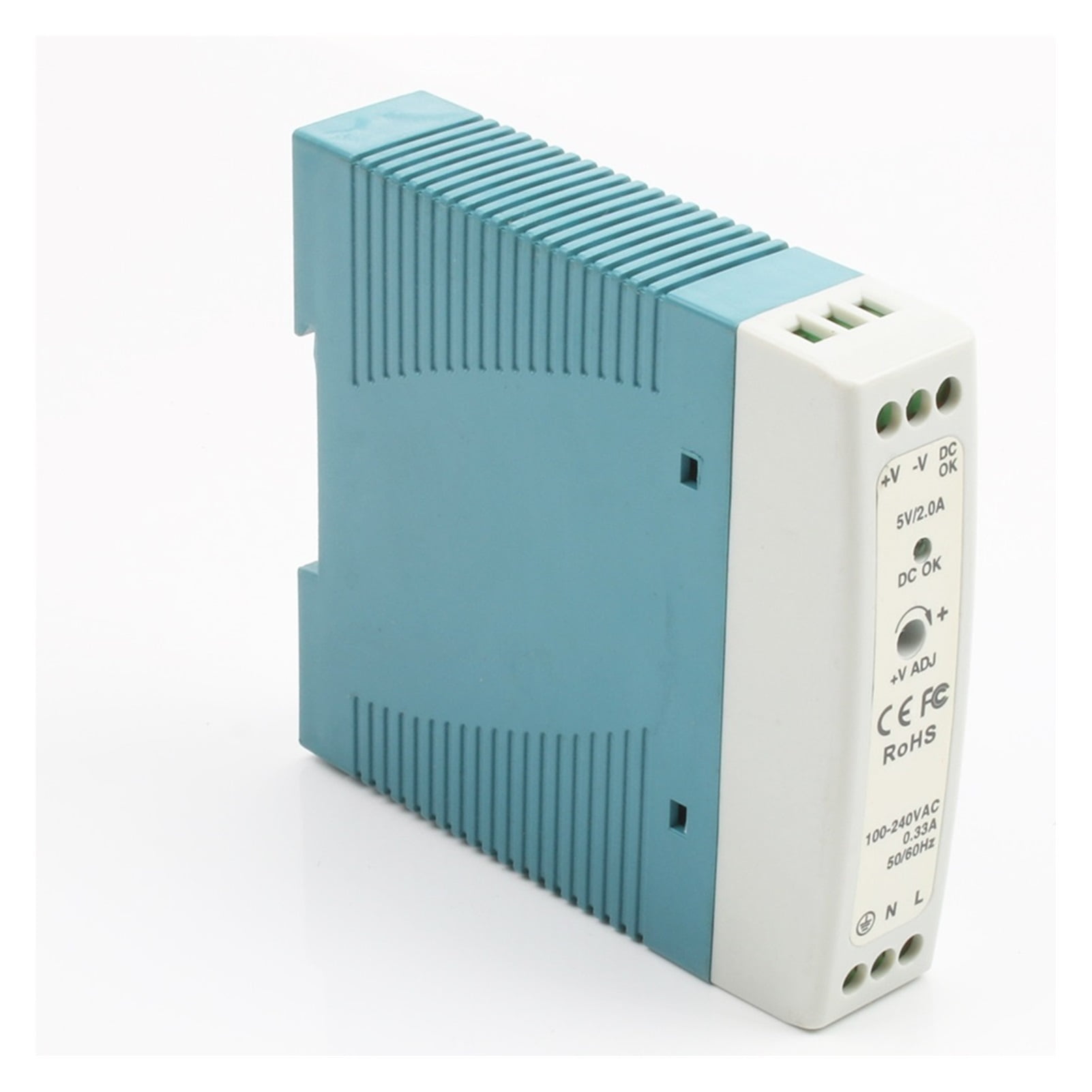

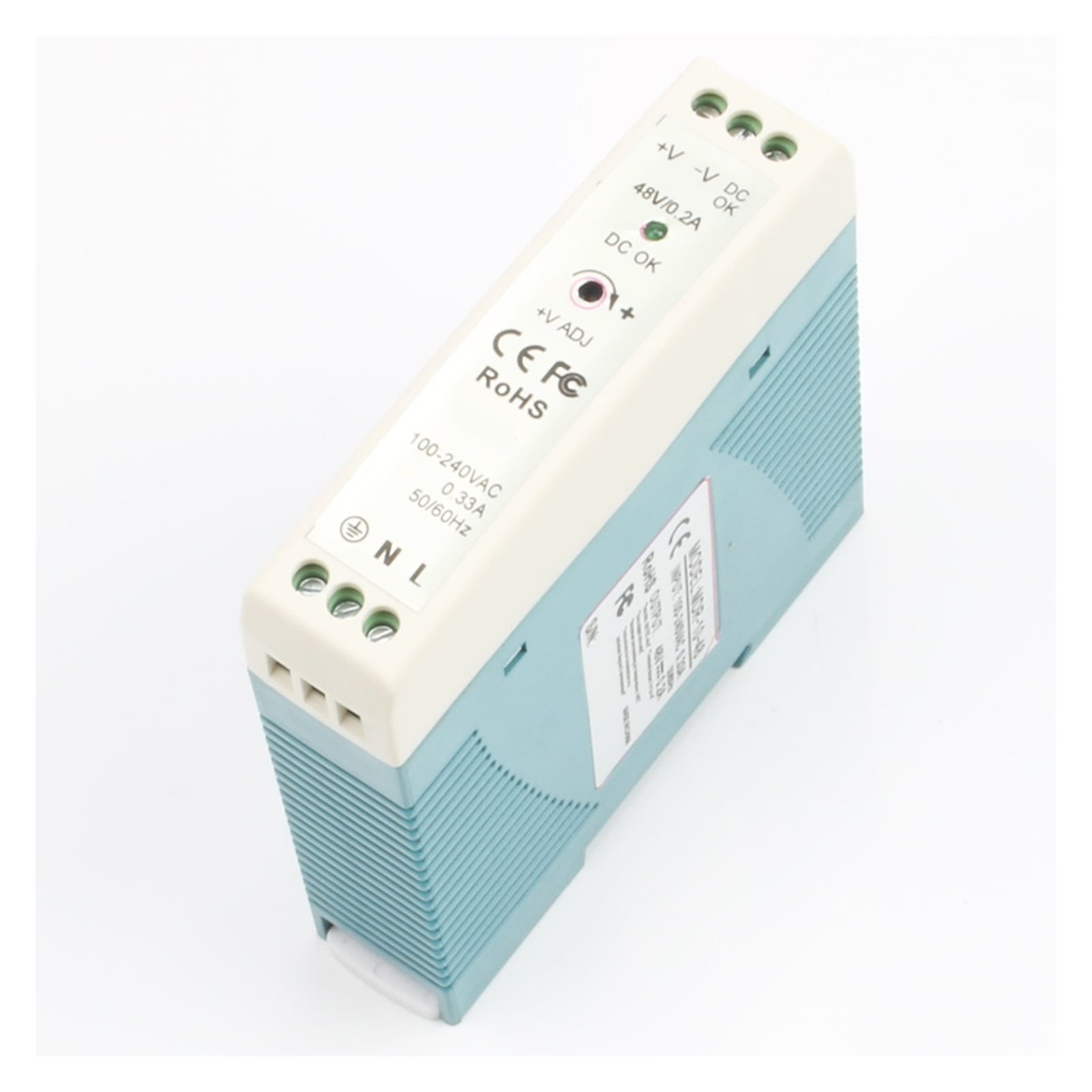

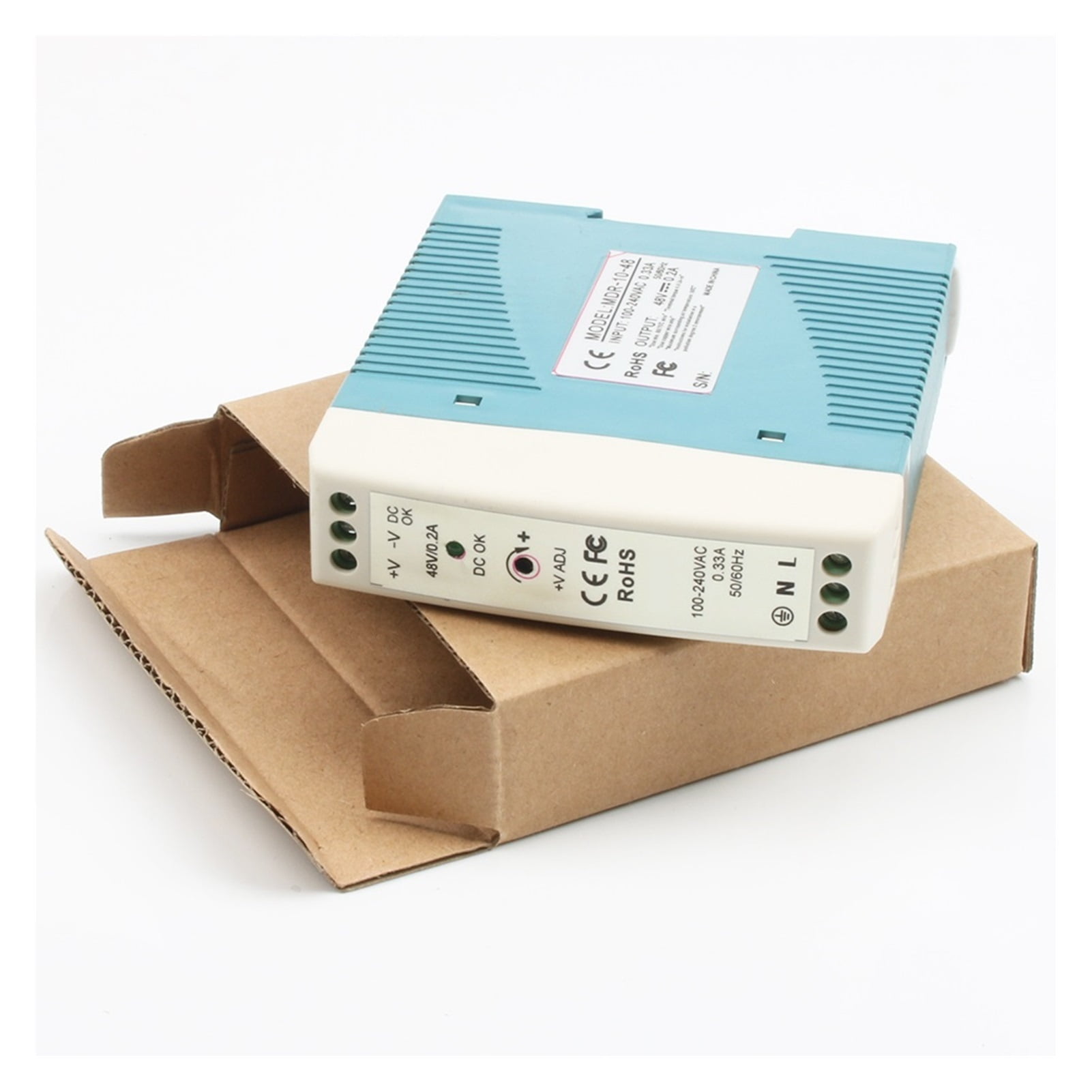

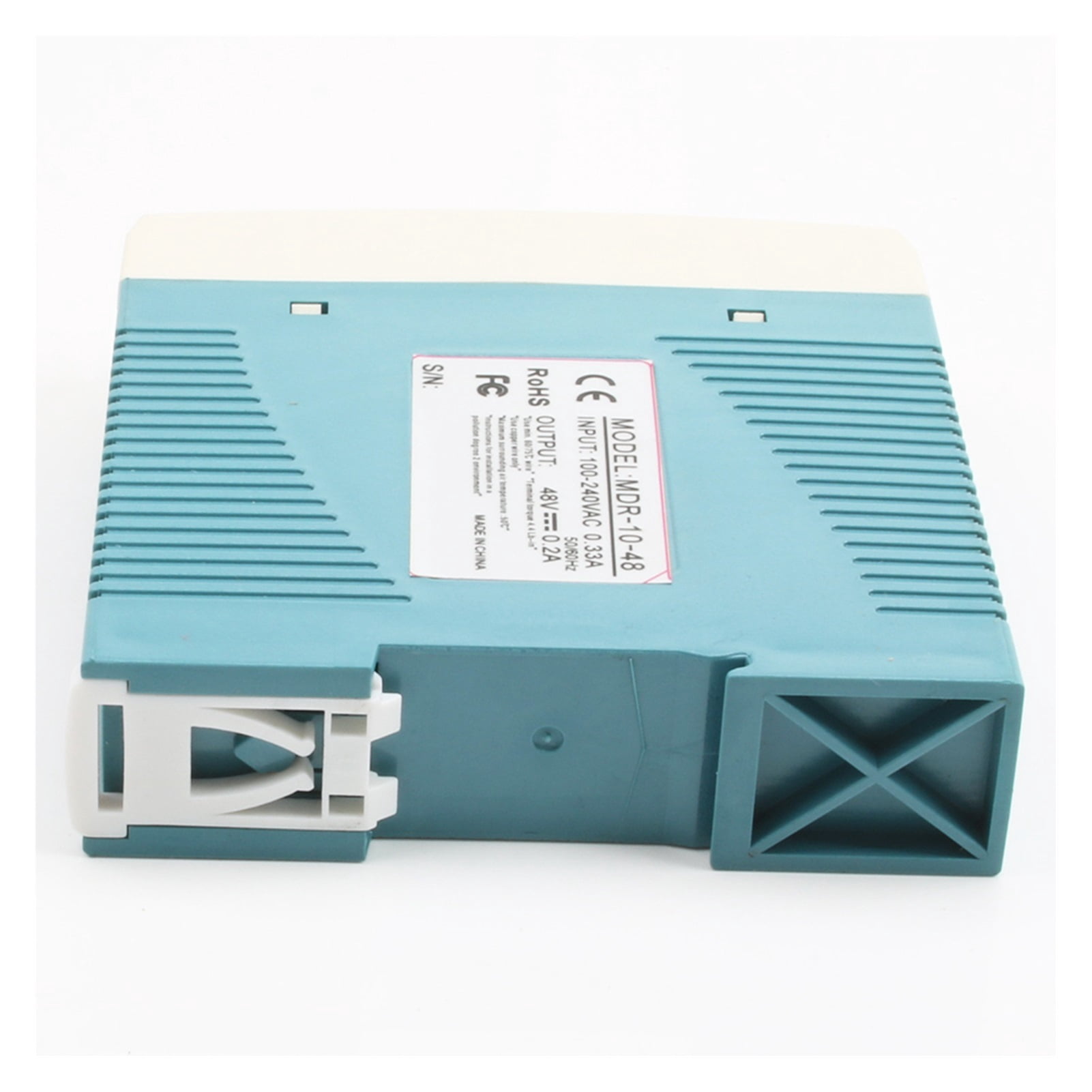

12V 5V 15V 24V 36V 48V 10W Din Rail Power Supply Ac-dc Driver AC/DC Wide Constant Voltage LED Strip ,Stable Input & Output

<p>Specifications</p><p>Model</p><p>MDR-10-5</p><p>MDR-10-12</p><p>MDR-10-24</p><p>MDR-10-36</p><p>MDR-10-48</p><p>OUTPUT</p><p>DC voltage</p><p>5V</p><p>12V</p><p>24V</p><p>36V</p><p>48V</p><p>Rated output current</p><p>2A</p><p>0.84A</p><p>0.42A</p><p>0.28A</p><p>0.21A</p><p>Output current range</p><p>0~2A</p><p>0-0.84A</p><p>0-0.42A</p><p>0-0.28A</p><p>0-0.21A</p><p>DC power</p><p>10W</p><p>10W</p><p>10W</p><p>10W</p><p>10W</p><p>Voltage tolerance </p><p>±5%</p><p>±3%</p><p>±2%</p><p>±2%</p><p>±2%</p><p>Ripple and noise</p><p>80mVp-p</p><p>120mVp-p</p><p>150mVp-p</p><p>150mVp-p</p><p>150mVp-p</p><p>Load stability</p><p>±5%</p><p>±3%</p><p>±2%</p><p>±2%</p><p>±2%</p><p>Setup,rise time</p><p>500ms,30ms/230VAC 1000MS,30MS/115VAC at full load</p><p>Hold up time</p><p>120ms/230VAC 25ms/115VAC at full load</p><p>INPUT</p><p>AC voltage range</p><p>85~164VAC 120~270VDC</p><p>Frequency range</p><p>47-63Hz</p><p>Efficiency</p><p>77%</p><p>81%</p><p>84%</p><p>84%</p><p>84%</p><p>AC current</p><p>0.33A/115VAC 0.21A/230VAC</p><p>Inrush current</p><p>COLD START 35A/115VAC 70A/230VAC</p><p>Leakage current</p><p>&lt;1mA/240VAC</p><p>PROTECTION</p><p>Overload</p><p>Above 105% rated output power</p><p>Protection type:Hiccup mode,recovers automatically after fault condition is removed</p><p>Over-voltage</p><p>5.75-6.75V</p><p>13.8-16.2V</p><p>27.6-32.4V</p><p>41.4-48.6V</p><p>55.2-64.81V</p><p>protection type:Shut down o/p voltage,re-power on torecover</p><p>ENVIRONMENT</p><p>Working temp.</p><p>-25~+70°</p><p>Working humidity</p><p>20~90% RH non-condensing</p><p>store temp.,humidity</p><p>-40~+80°,10~95% RH</p><p>Temp. coefficient</p><p>±0.03%/°C (0~50°C )</p><p>Vibration</p><p>I/P-O/P;3KVAC</p><p>OTHER </p><p>Overall dimension</p><p>22.5*90*100 mm</p><p>Weight</p><p>0.17Kg</p><p>Related Products: </p><p>switching power supply, </p><p>led power supply switch, </p><p>dc power supply, </p><p>ac to dc switch transformer, </p><p>universal driver transformer, </p><p>switching power supply, </p><p>power transformer switch, </p><p>regulated power supply, </p><p>led dc driver, </p><p>led power supply switch, </p><p>12v power supply, </p><p>110v to 12v converter</p>

• 1.High Efficiency and good price
• 2.Built-in EMI filter
• 3.100% full load burn-in test
• 4.Low output ripple and noise
• 5.Protection:Over load/Over voltage/Short circuit
